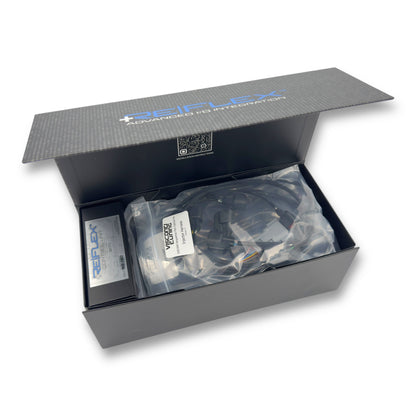

ReFlex+ Advanced I/O Integration - BMW B58/S58 Plug-n-Play

Name: ReFlex+ Advanced I/O Integration - BMW B58/S58 Plug-n-Play
Brand: MOTIV
SKU: 910.1027
Price: 1294.0 USD
Availability: InStock

$1,294.00

Shipping calculated at checkout.

Brand: MOTIV

Availability: In stock

SKU: 910.1027

Product variants

$1,294.00

MOTIV/Visconti / PTCAN2

Description
notice

The ReFlex+ is an advanced integration module for performance vehicle tuning and auxiliary component control. With multiple patented technologies, the ReFlex+ is more than just an auxiliary injector controller. It offers advanced features typically found in high-end ECUs—at a fraction of the price. The ReFlex+ is designed to run in multiple control configurations from standalone tuning to full CAN Bus integration and offers unparalleled precision, flexibility, and performance.

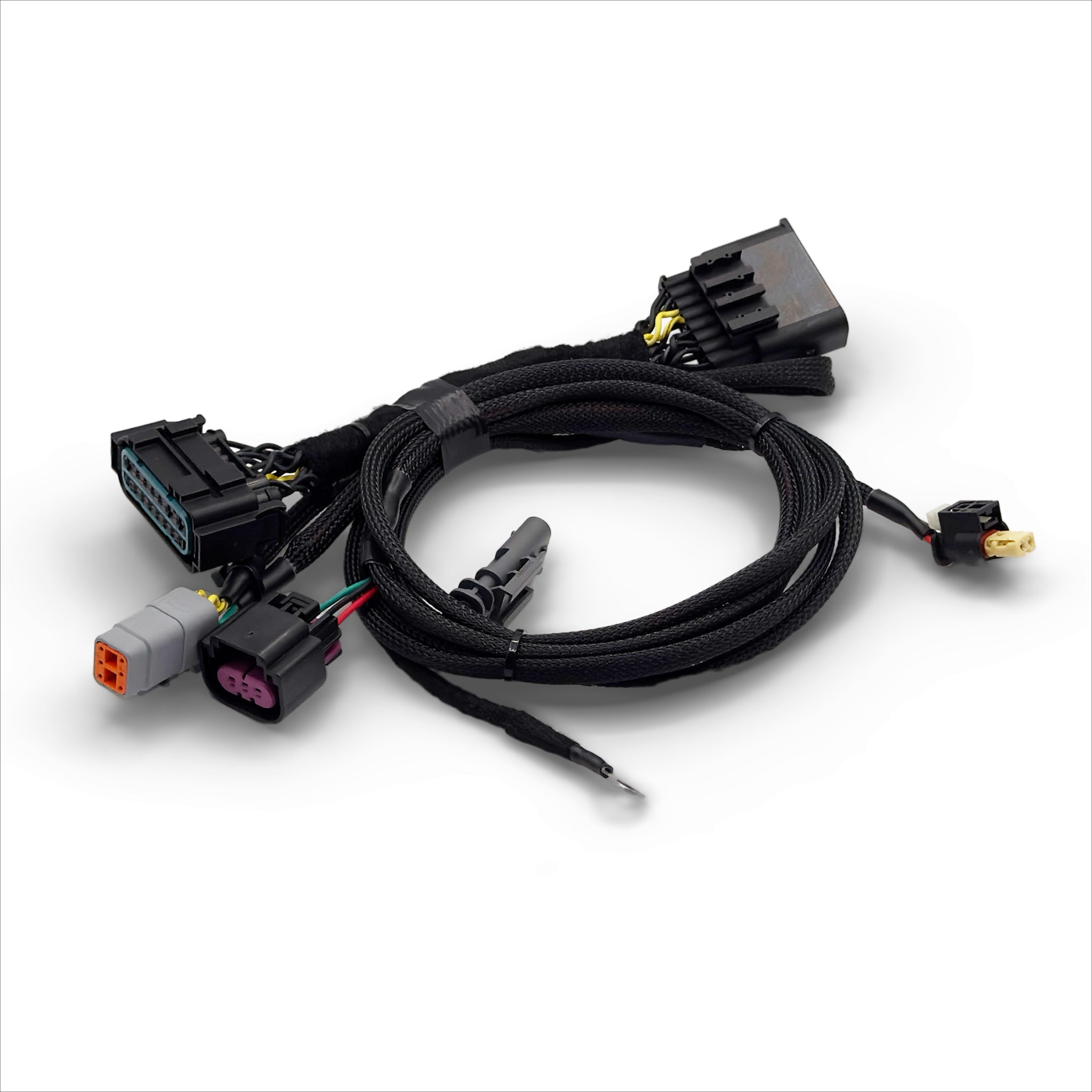

NOTE: Select PT-CAN2 for all MHD+ and EcuTek cars with automatic transmissions. For BM3 and all manual transmission cars select PT-CAN.

Advanced Control Strategies

Standalone Mode – No CAN Bus communication required
Integrated CAN Bus – Compatible with MHD, EcuTek, MG Flasher, BM3 and any other tuning platform with the ability to receive and/or send CAN Bus messages.
Advanced CAN Bus – Full integration with EcuTek and MHD+

Precision Sequential Port Injection & More

Originally developed to modernize port fuel injection, the ReFlex+ goes beyond traditional batch-fire controllers by delivering true sequential fuel injection. This ensures fuel is injected at the optimal moment for maximum efficiency, power, and reliability. But it doesn’t stop there—the ReFlex+ is a complete IO control hub designed for performance-driven applications.

Versatile Inputs & Outputs

The ReFlex+ is equipped with a range of inputs and outputs to support flex fuel tuning, boost control, sensor monitoring, and more.

Inputs:

Sequential Port Injection – Supports up to 8 injectors with fault-sensing feedback
4x Analog Inputs – Compatible with 0-5V and 4-20mA sensors
2x Frequency Inputs – Accepts signals up to 20kHz
Dedicated Flex Fuel Input – Reads ethanol content for real-time flex fuel tuning

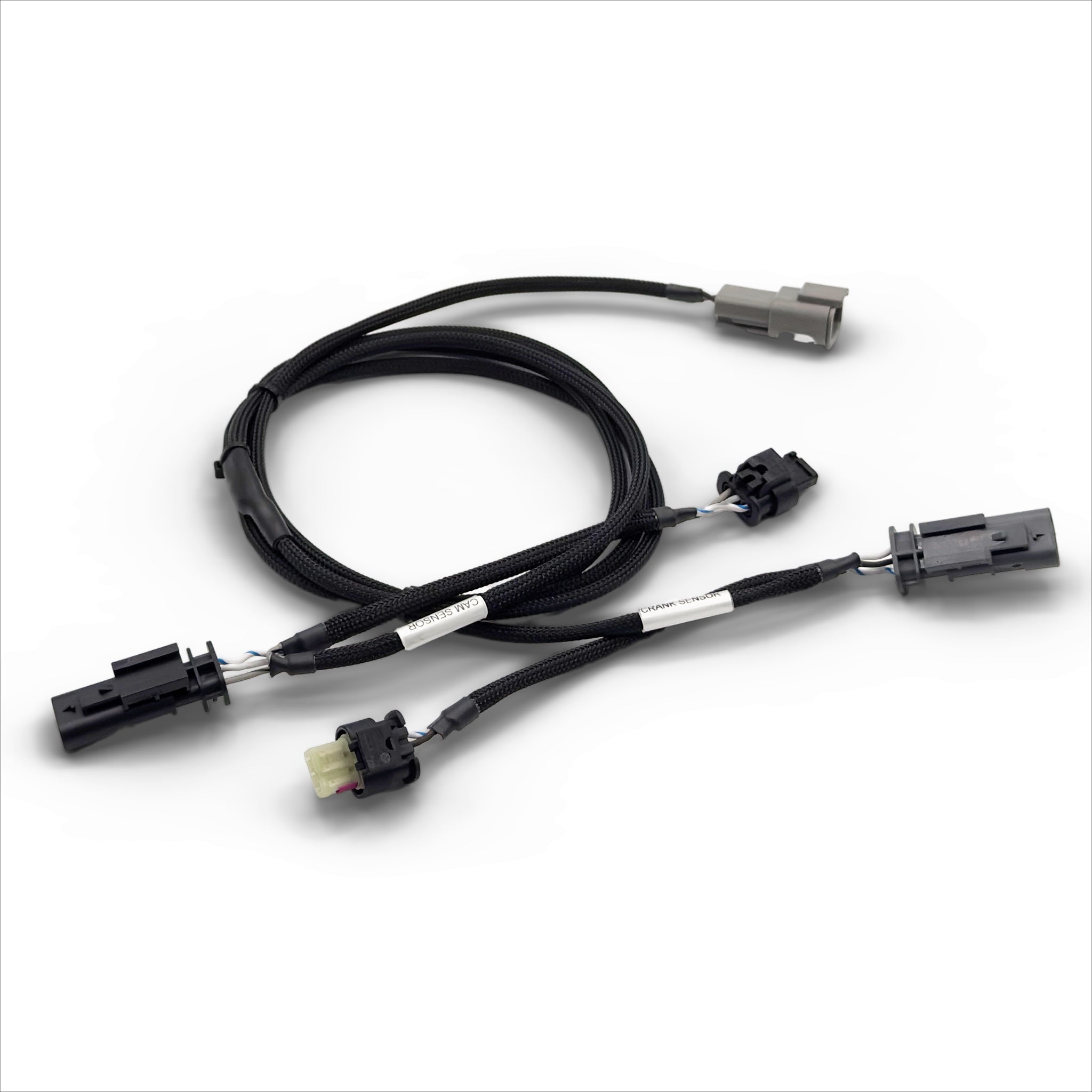

MAP, Cam, and Crank Sensor Inputs – Essential for engine timing and load calculations

Outputs:

4x Low-Side Auxiliary Outputs – PWM or digital ground triggers for methanol injection, nitrous, boost control, fuel pumps, and more
12V Switched Outputs – Power additional components with multiple ignition-switched voltage outputs

OEM-Level Integration & Flash Tuning Compatibility

The ReFlex+ seamlessly integrates with leading flash tuning platforms, including MHD, EcuTek, and MG Flasher allowing the factory ECU to directly control ReFlex+ functions. In addition, built-in safety measures are in place to help protect your investment.

Fully configurable through TunerPro RT, the ReFlex+ supports universal and vehicle-specific configurations. Free starter maps and setup guides are available on our website, with additional support available through support@motivmotorsport.com.

Unlock the Full Potential of Your Build

Whether you're looking for precise auxiliary fuel control, advanced sensor monitoring, or the ability to control performance aftermarket components, the ReFlex+ delivers unmatched performance and versatility.

Take your tuning to the next level with the MOTIV ReFlex+ Advanced IO Integration—engineered for power, precision, and reliability.

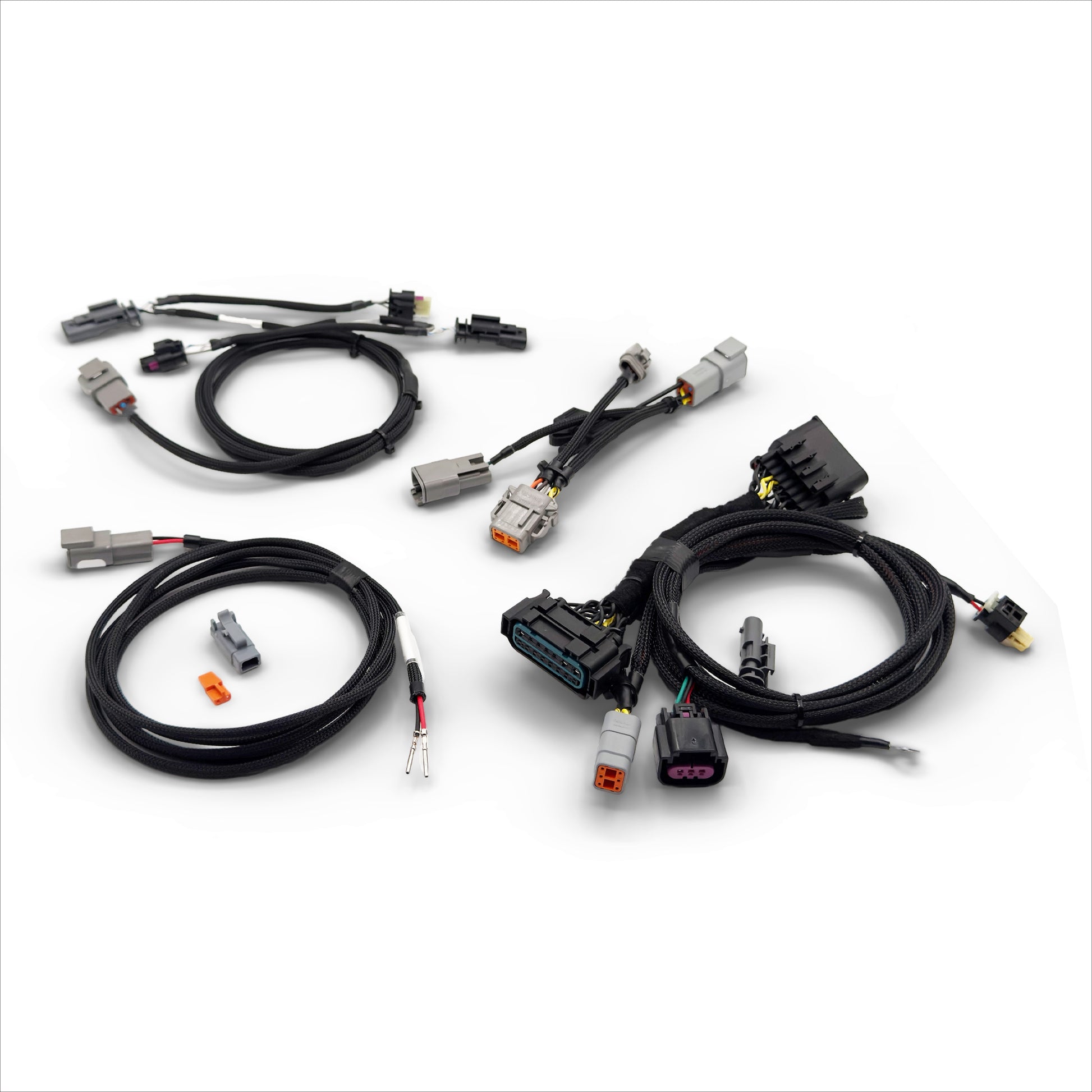

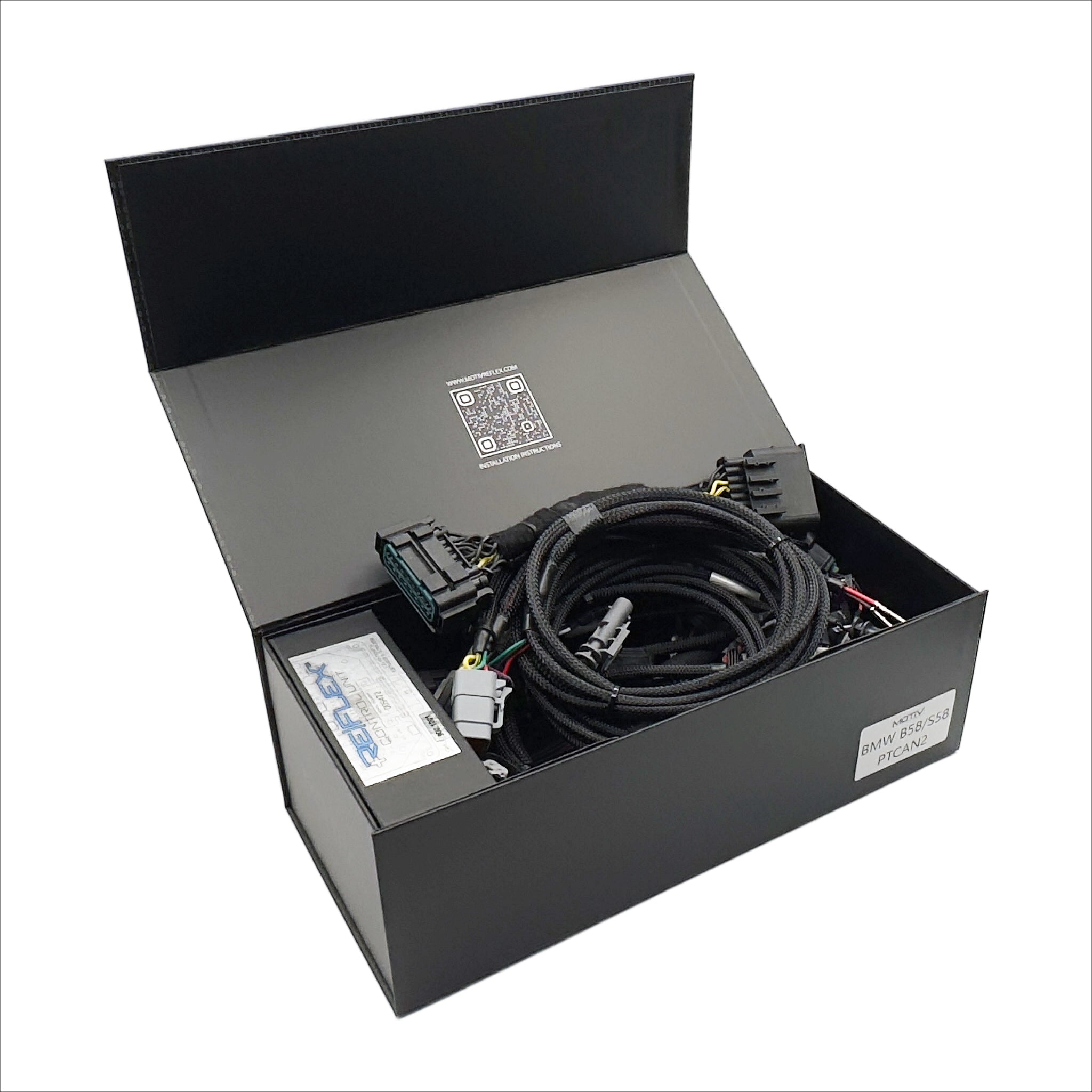

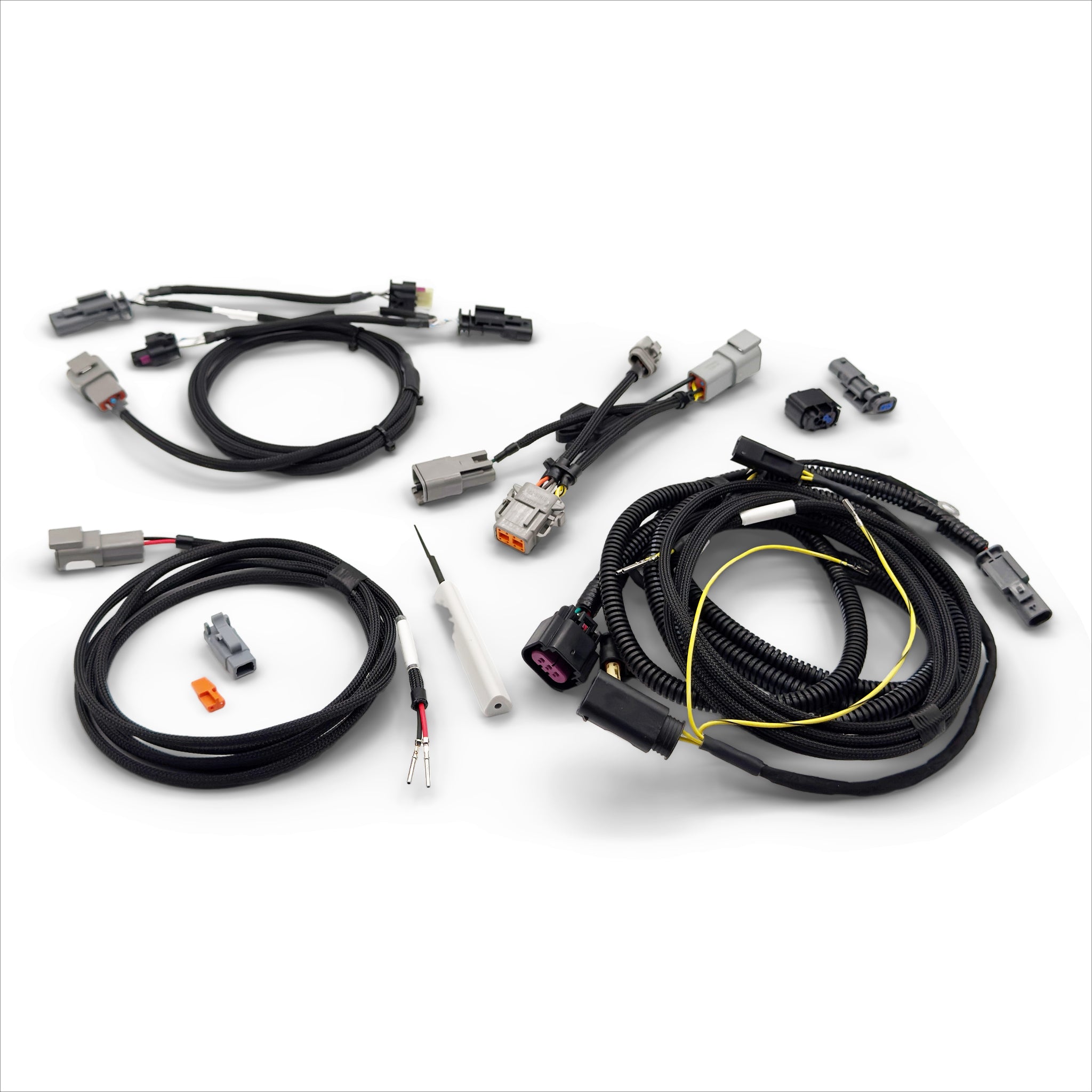

INCLUDED IN VISCONTI PTCAN2/PTCAN KIT:

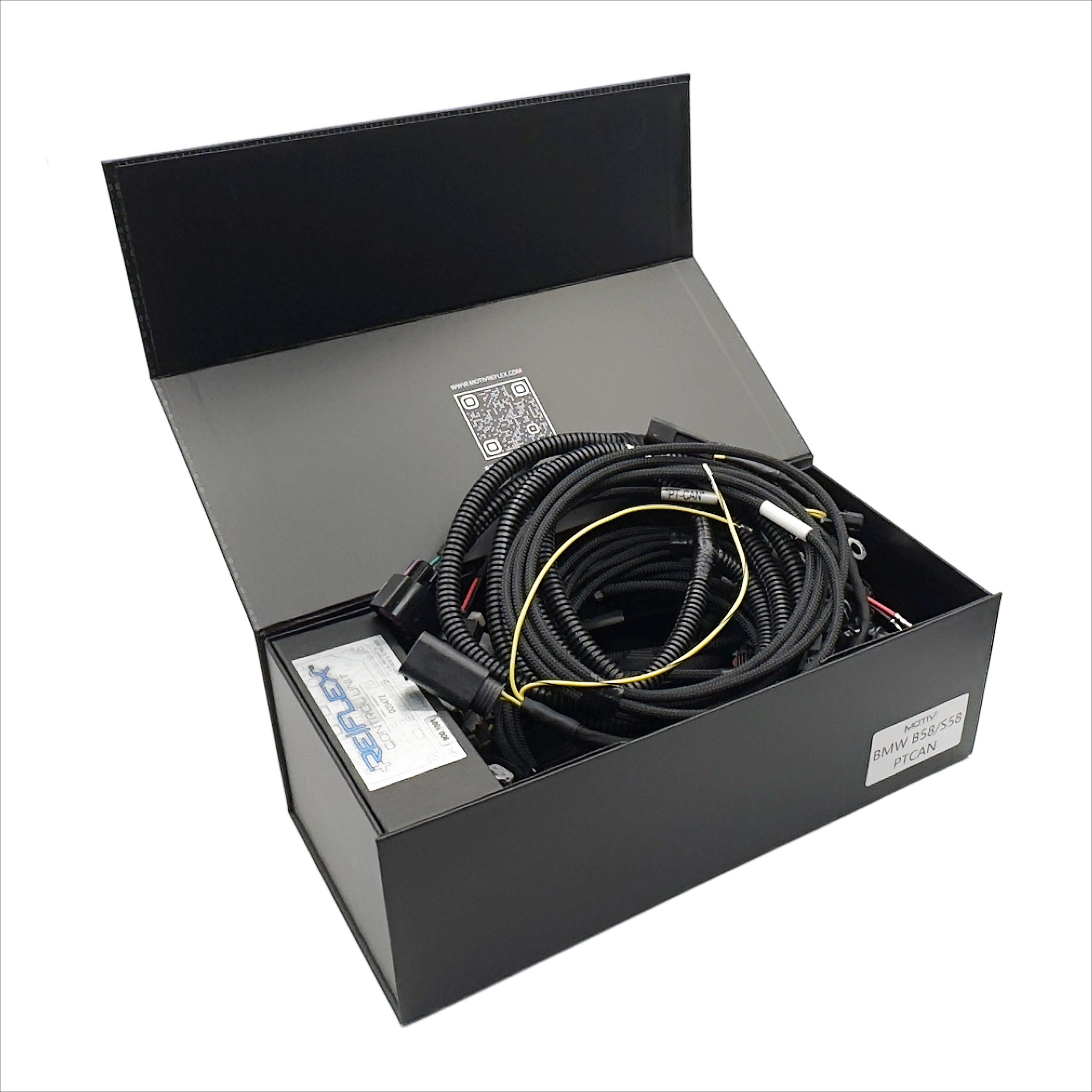

INCLUDED IN TMS PTCAN2/PTCAN KIT:

We recommend the following accessories when purchasing a ReFlex+ to integrate on your vehicle:
